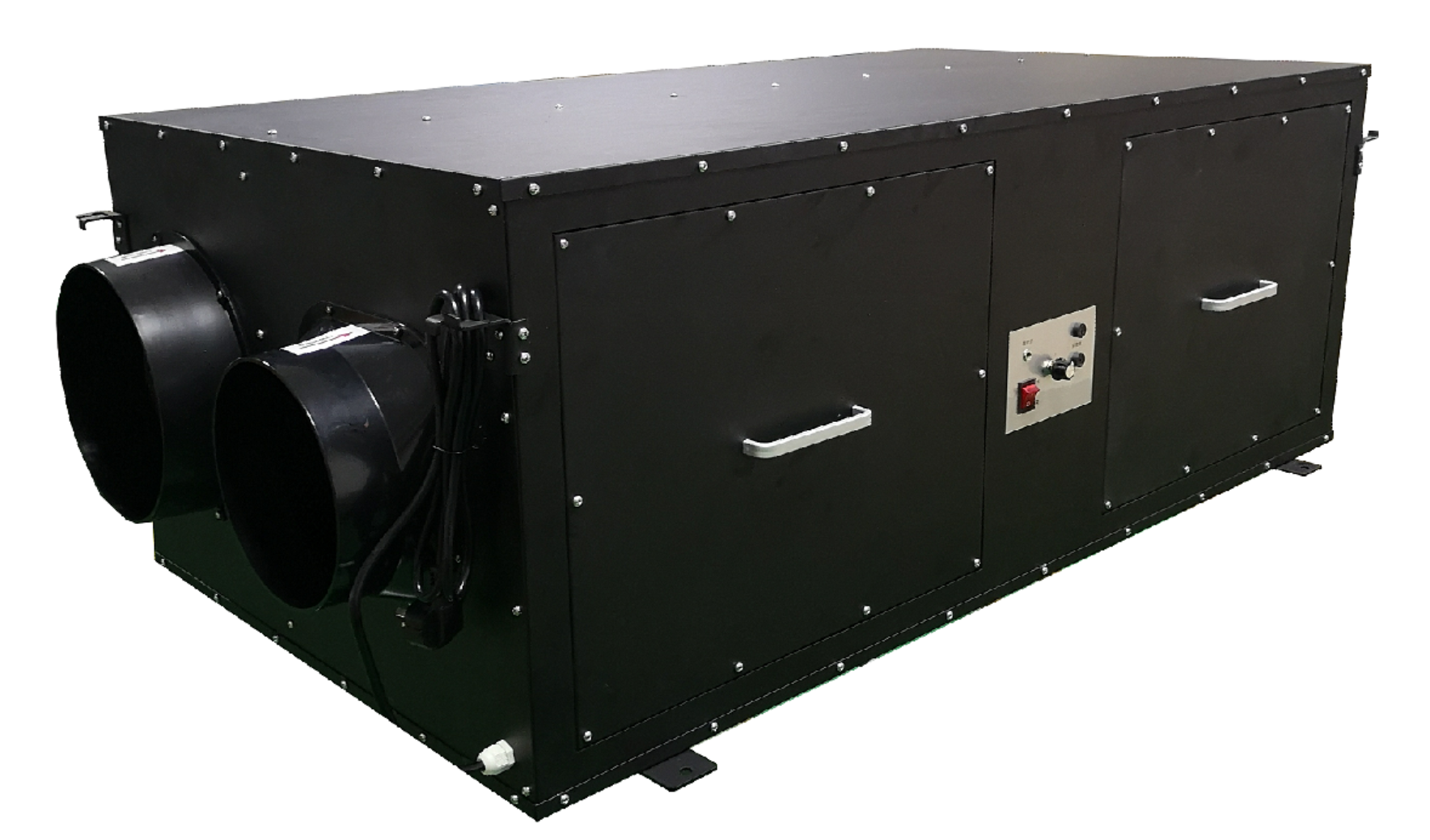

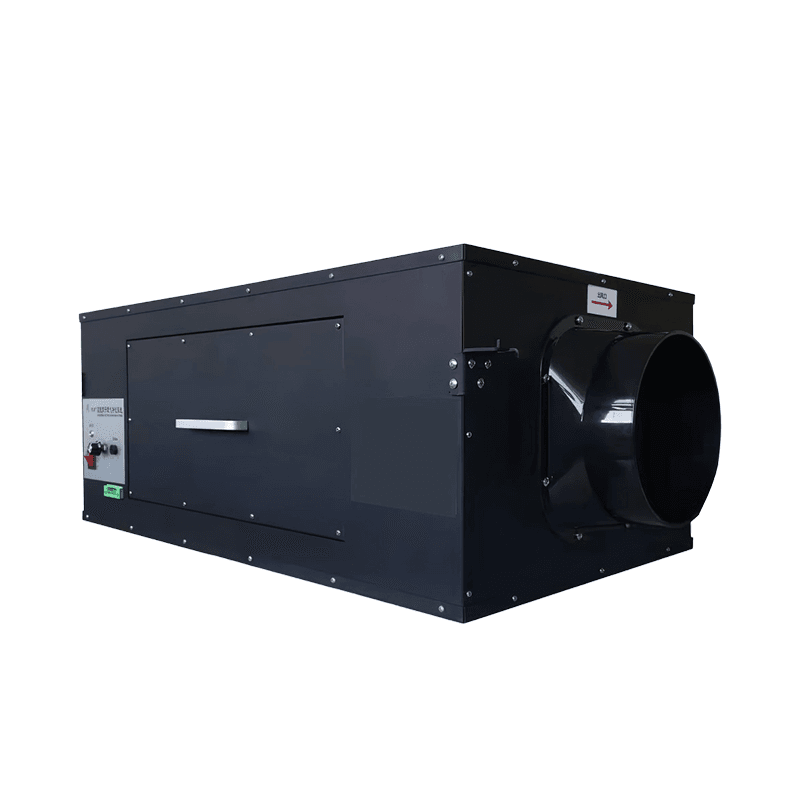

ACF Series Commercial Duct-Mounted Ion Air Purification Systems
Heavy-duty ionization solutions for ventilation systems. Treats incoming fresh air or exhaust fumes in large commercial spaces.
The Airsafer ACF Duct Series is engineered to integrate seamlessly with your facility’s ventilation system. Whether you need to purify incoming fresh air for a lobby or neutralize toxic exhaust from a garbage room, these units deliver powerful Super Oxygen Ion treatment directly into the airflow.
Capable of handling air volumes from 500m³/h to 2000m³/h, this series effectively decomposes organic pollutants (VOCs, Benzene), eliminates odors, and kills airborne pathogens. Ideal for public restrooms, refuse centers, and underground parking lots where standard air purifiers aren’t enough.
Key Features of the ACF Duct-Mounted Ion Air Purifier
HVAC Integrated: Connects directly to ductwork (Φ150mm – Φ250mm) for whole-space coverage.
Versatile Configurations: Available in Fresh Air (Supply), Exhaust (Discharge), or Hybrid Circulation models.
High-Power Ionization: Generates ~2 million ions/cm³ to instantly neutralize heavy odors and gases.
Heavy-Duty Build: Industrial metal housing designed for 10+ years of service life.
Total Protection: Eliminates mold, viruses (SARS), ammonia, and settling dust particles.
Requiest a QuoteCommercial Ionization System Specifications
| Parameter | Specification |
|---|---|
| Main Unit Dimensions | 38cm(L)×45 cm(H)×28cm(W) |
| Weight | 13kg |
| Spray Range | 4m |
| Spray Droplet Size | 2~6μm No dripping |
| Coverage per Atomizer | 25 m² |
| Interval & Duration | Minimum interval: runs once every 5 minutes (optional external timer switch supported) |
| Power | 220V / 375W(voltage can be cutomized) |
| Solution Tank Capacity | 4L |
| Multi‑Nozzle Spray Box Compatibility | 3-9 nozzles |
| Model | ACF-450-6CW | ACF-1000-12EW | ACF-500-8FW | ACF-2400-24DW | ACF-4000-38EW |
|---|---|---|---|---|---|
| Function | Fresh Air (Supply) | Fresh Air (Supply) | Exhaust Only | Hybrid (Supply+Exhaust) | Hybrid (Supply+Exhaust) |
| Coverage | ≤ 150 m³ | ≤ 300 m³ | ≤ 400 m³ | ≤ 300 m³ | ≤ 450 m³ |
| Air Volume | ≤ 500 m³/h | ≤ 1000 m³/h | 750 m³/h | ≤ 1000 m³/h | ≤ 2000 m³/h |
| Power | 200W | 300W | 400W | 1300W | 1800W |
| Duct Size | Φ150mm | Φ200mm | Φ200mm | Φ200mm | Φ250mm |
| Size (mm) | 730×250×450 | 1000×460×330 | 1500×600×800 | 1280×680×400 | 1430×680×470 |
Ideal Applications for Commercial HVAC Odor Control
Trash Room Odor Elimination

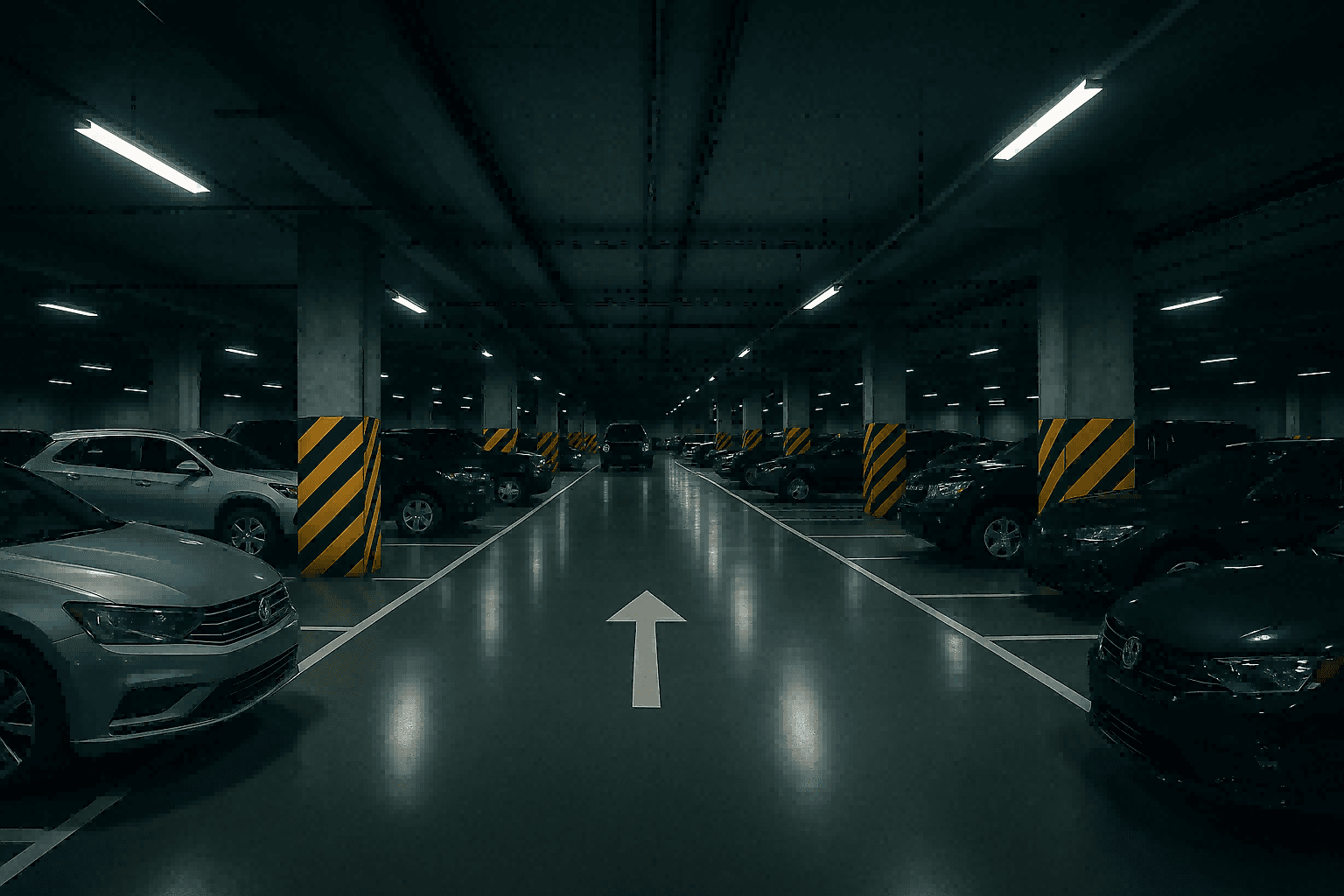

Underground Parking Garage Air Quality
Locker & Changing Room Purification
Public Restroom Deodorization
Need Custom Services?
We specialize in private labeling and custom engineering.
Custom Logo & Packaging
Exclusive Scent Formulation/ Odor Solution
Equipment Voltage/Plug Adaptation
