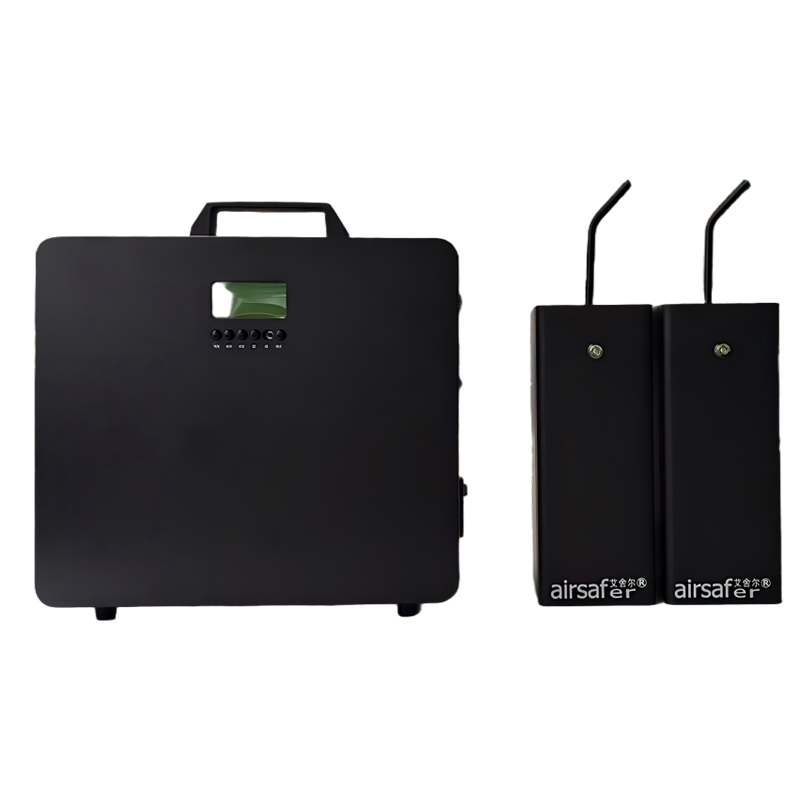

ASX-01: Compact Aluminum Dry Fog Deodorization System
Discrete & Durable Odor Control for Elevators & Corridors
Designed for intimate environments, the ASX-01 combines a sleek aluminum alloy body with a flexible split design. With a 20-meter transmission range, the main unit can be hidden away while the atomizer delivers precise fragrance to spaces up to 25m². Ideal for high-end elevators, restrooms, and compact offices.
Key Features of the ASX-01 Split-System
Premium Aluminum Build: Crafted from high-quality aluminum alloy for superior durability, heat dissipation, and a modern aesthetic.
Flexible Split Installation: The host drives the atomizer from up to 20 meters away, allowing for completely invisible installation (perfect for tight spaces like elevators).
Ultra-Low Energy: Consumes only 4W (DC12V), offering an eco-friendly footprint for 24/7 operation.
Dual Output Capable: Powerful enough to drive 1 to 2 atomizer units simultaneously, offering flexible coverage options.
Efficient Capacity: Equipped with a 200ml bottle, perfectly sized to provide long-lasting scent for small areas (25m²) without frequent maintenance.
Requiest a QuoteTechnical Specifications & Installation
| Parameter | Specification |
|---|---|
| Model | ASX-01 |
| Material | Aluminum Alloy |
| Coverage Area | 25 m² |
| Atomizers Supported | 1 ~ 2 units |
| Atomizer Capacity | 200ml |
| Atomizer Dimensions | 11.5 x 11.5 x 39.5 cm |
| Host Dimensions | 15 x 15 x 14 cm |
| Power/Voltage | 4W / DC12V |
| Net Weight | 2.8 kg |
| Parameter | Specification |
|---|---|
| Main Unit Dimensions | 38cm(L)×45 cm(H)×28cm(W) |
| Weight | 13kg |
| Spray Range | 4m |
| Spray Droplet Size | 2~6μm No dripping |
| Coverage per Atomizer | 25 m² |
| Interval & Duration | Minimum interval: runs once every 5 minutes (optional external timer switch supported) |
| Power | 220V / 375W(voltage can be cutomized) |
| Solution Tank Capacity | 4L |
| Multi‑Nozzle Spray Box Compatibility | 3-9 nozzles |
Versatile Use Cases for Dry Fog Deodorization
Trash Rooms & Waste Managemen
Stadium Equipment & Gym Locker Rooms
Small Changing Rooms & Storage Areas
Public Restroom
Need Custom Services?
We specialize in private labeling and custom engineering.
Custom Logo & Packaging
Exclusive Scent Formulation/ Odor Solution
Equipment Voltage/Plug Adaptation
