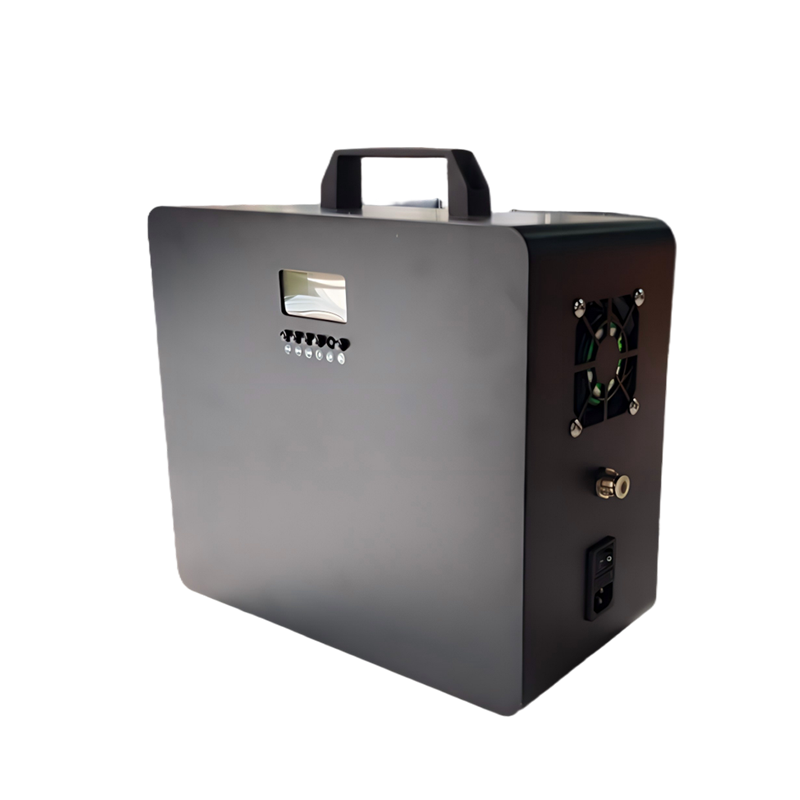

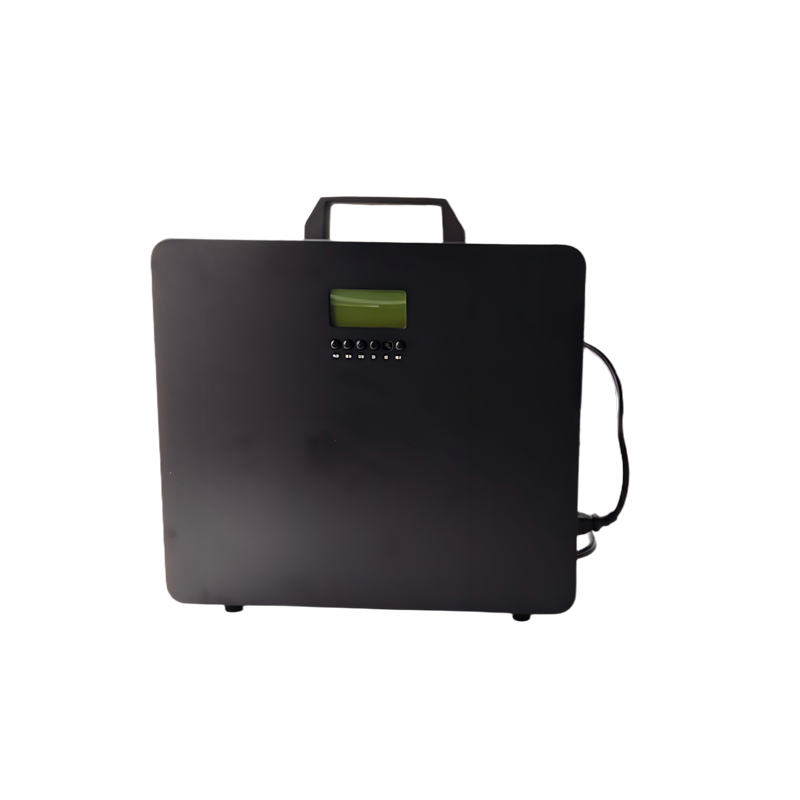

ASX-06 Large Dry Fog Deodorization System | Industrial Odor Control
Revolutionary Oil-Based Deodorization: 1-Micron Dry Mist, Zero Humidity, Instant Results.
Experience the next generation of air purification with the Airsafer ASX-06. Unlike traditional water-based systems, this ultra-micro nano dry fog unit uses pure oil-based concentrates to eliminate odors in just 5 minutes. It delivers powerful coverage (up to 250m²) without increasing humidity, causing icing, or requiring frequent maintenance.
Key Features of ASX-06 System
True Dry Fog Technology: Generates particles <1 micron. The dry mist stays airborne longer to neutralize odors instantly without wetting floors or causing ice in winter.
No Dilution Needed: Uses high-concentration oil-based plant extracts. Direct usage means no water refilling and higher efficiency.
Rapid & Powerful: Clears malodors in just 5 minutes with a transmission distance of up to 80 meters.
Ultra-Low Maintenance: One 200ml bottle lasts up to 30 days. Energy-efficient design consumes only 24W (approx. 1kWh/month per unit).
Smart Scheduling: Features 4 programmable time groups and flow adjustments for peak/off-peak hours to save costs.
Bonus Function: Optional insect-repelling formula available to deter mosquitoes and flies while deodorizing.
Requiest a QuoteTechnical Specifications
| Parameter | Specification |
|---|---|
| Model | ASX-06 |
| Technology | Nano Dry Fog (Oil-based) |
| Coverage Area | 250 m² |
| Atomizers Supported | 6 ~ 9 units |
| Coverage per Atomizer | 25 m² |
| Transport Distance | Up to 80 meters |
| Dimensions | 400 x 400 x 200 mm |
| Weight | 8 KG |
| Power Supply | AC 220V / 50HZ / 24W |
| Parameter | Specification |
|---|---|
| Main Unit Dimensions | 38cm(L)×45 cm(H)×28cm(W) |
| Weight | 13kg |
| Spray Range | 4m |
| Spray Droplet Size | 2~6μm No dripping |
| Coverage per Atomizer | 25 m² |
| Interval & Duration | Minimum interval: runs once every 5 minutes (optional external timer switch supported) |
| Power | 220V / 375W(voltage can be cutomized) |
| Solution Tank Capacity | 4L |
| Multi‑Nozzle Spray Box Compatibility | 3-9 nozzles |
Versatile Applications for ASX-06 Deodorization System

Waste Stations

Sewage Plants

Cleanroom Gowning Room

Public Restroom
Need Custom Services?
We specialize in private labeling and custom engineering.
Custom Logo & Packaging
Exclusive Scent Formulation/ Odor Solution
Equipment Voltage/Plug Adaptation
